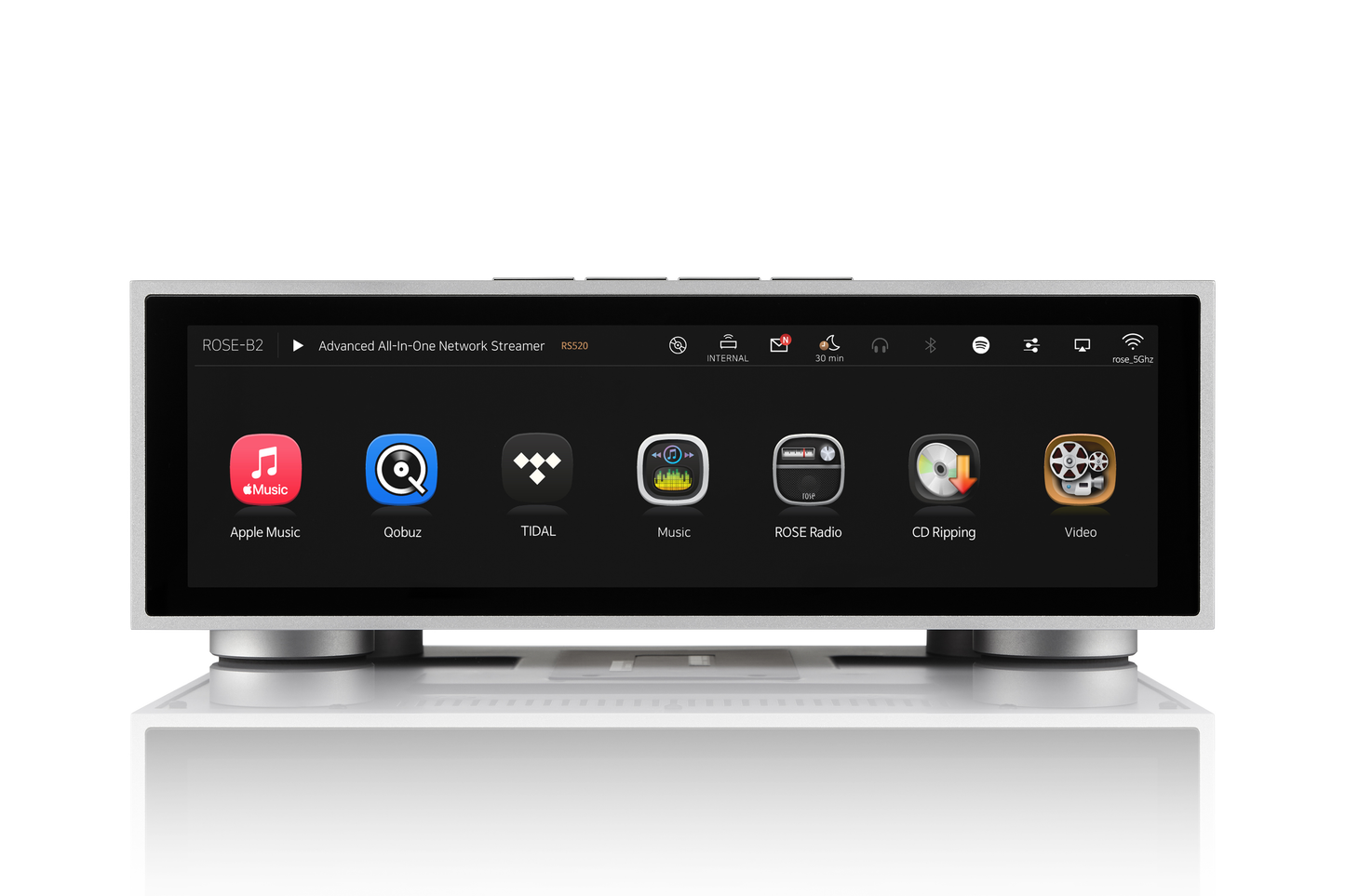

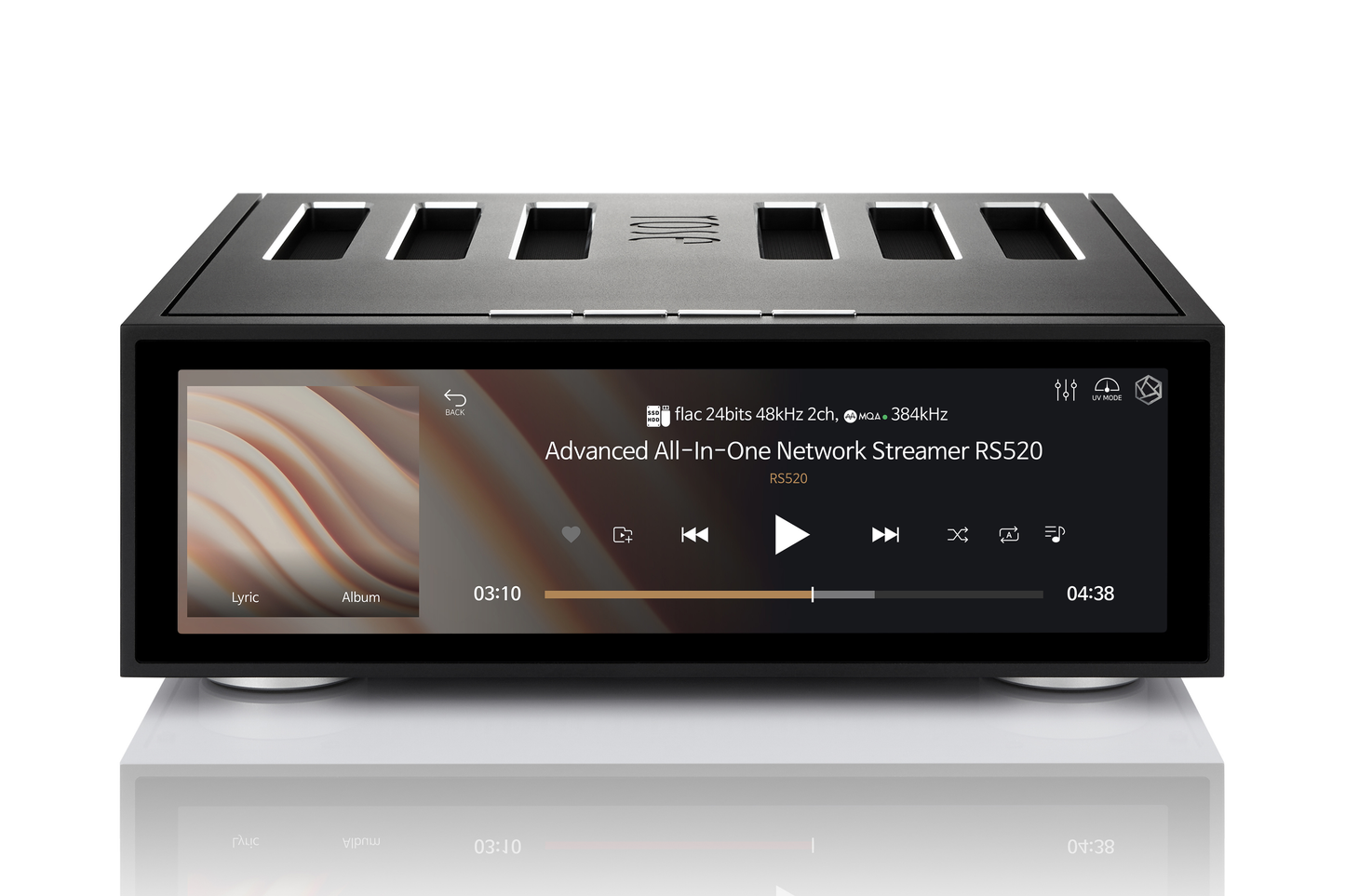

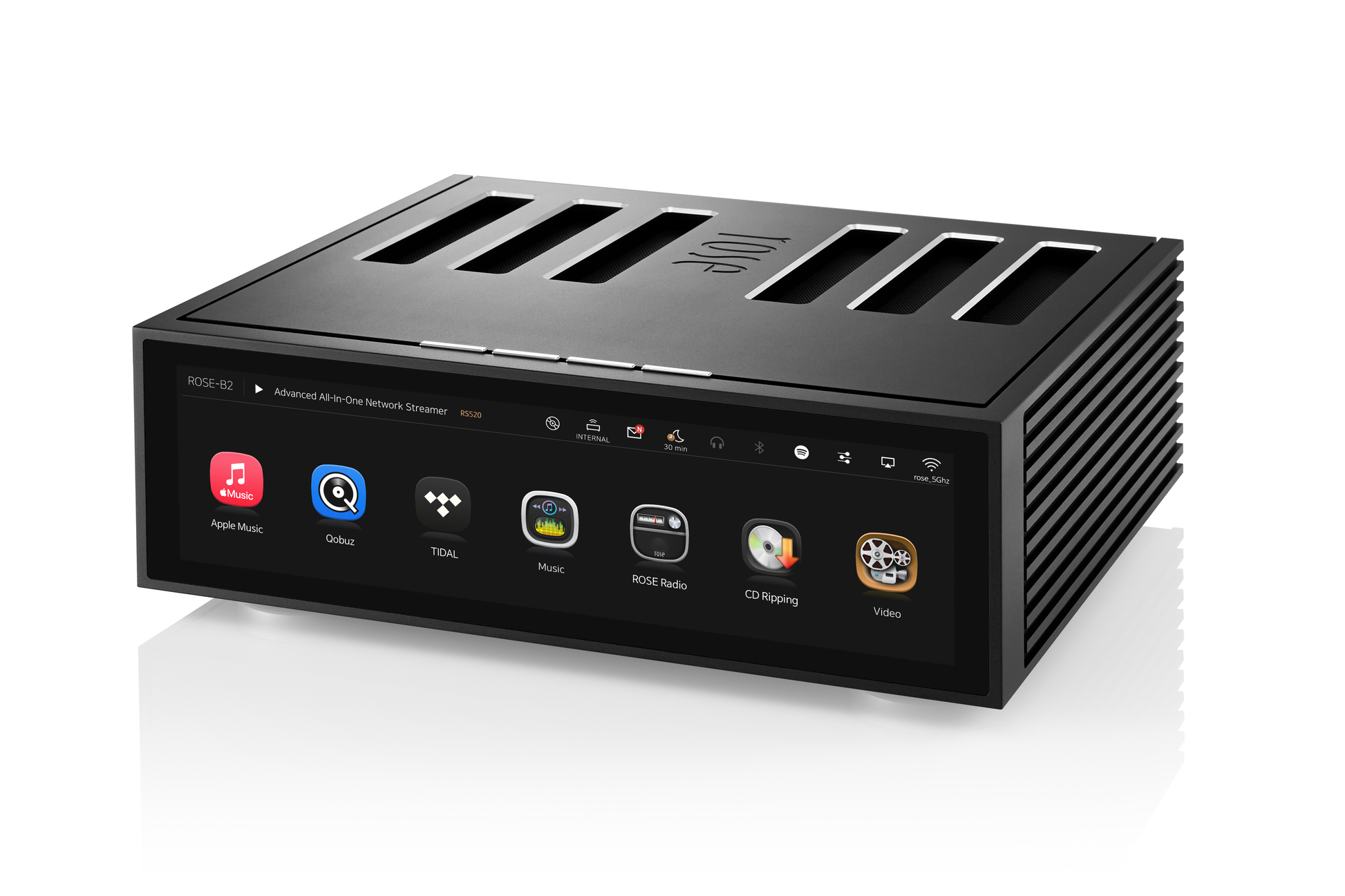

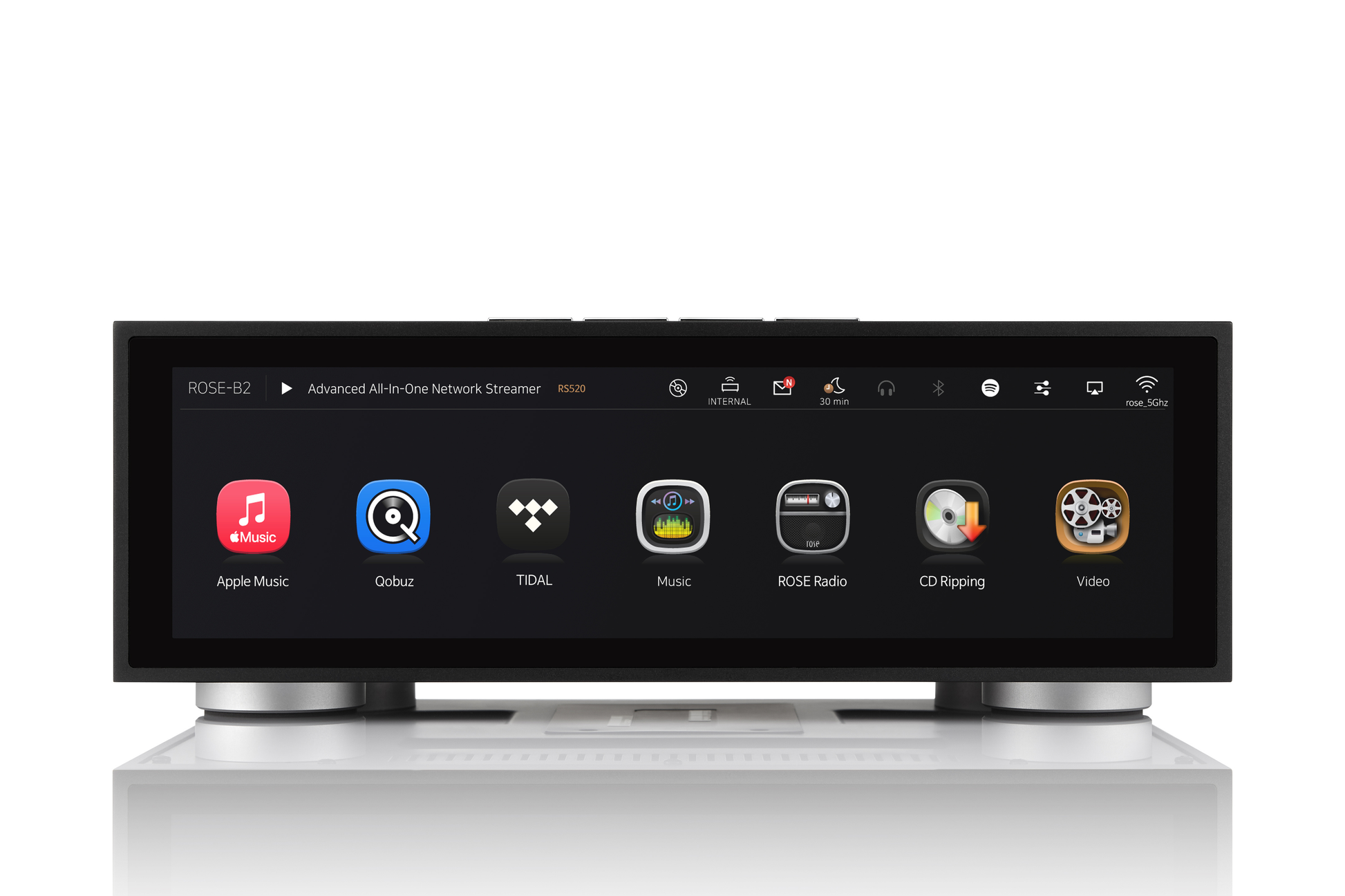

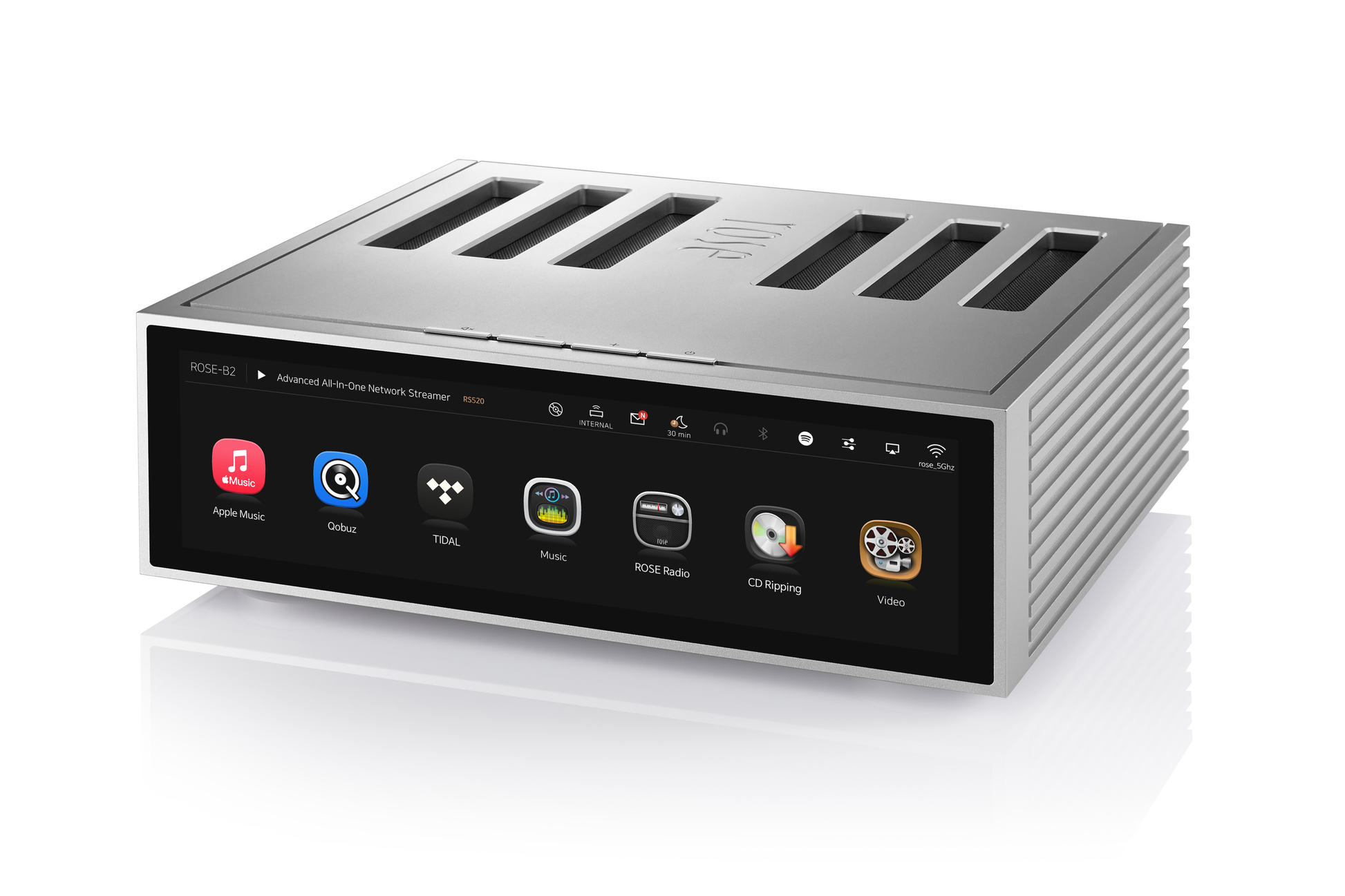

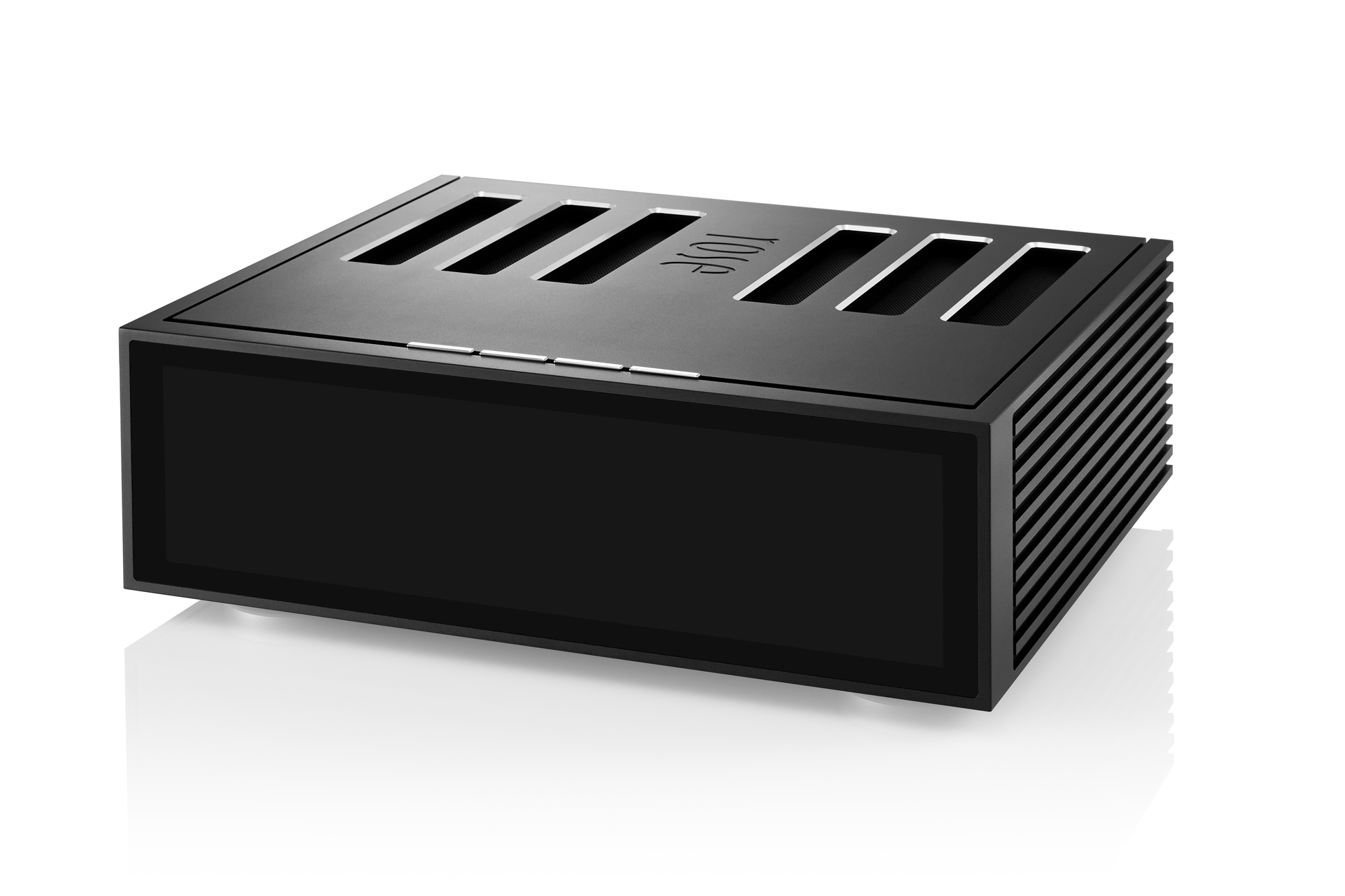

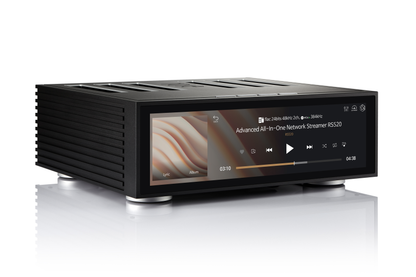

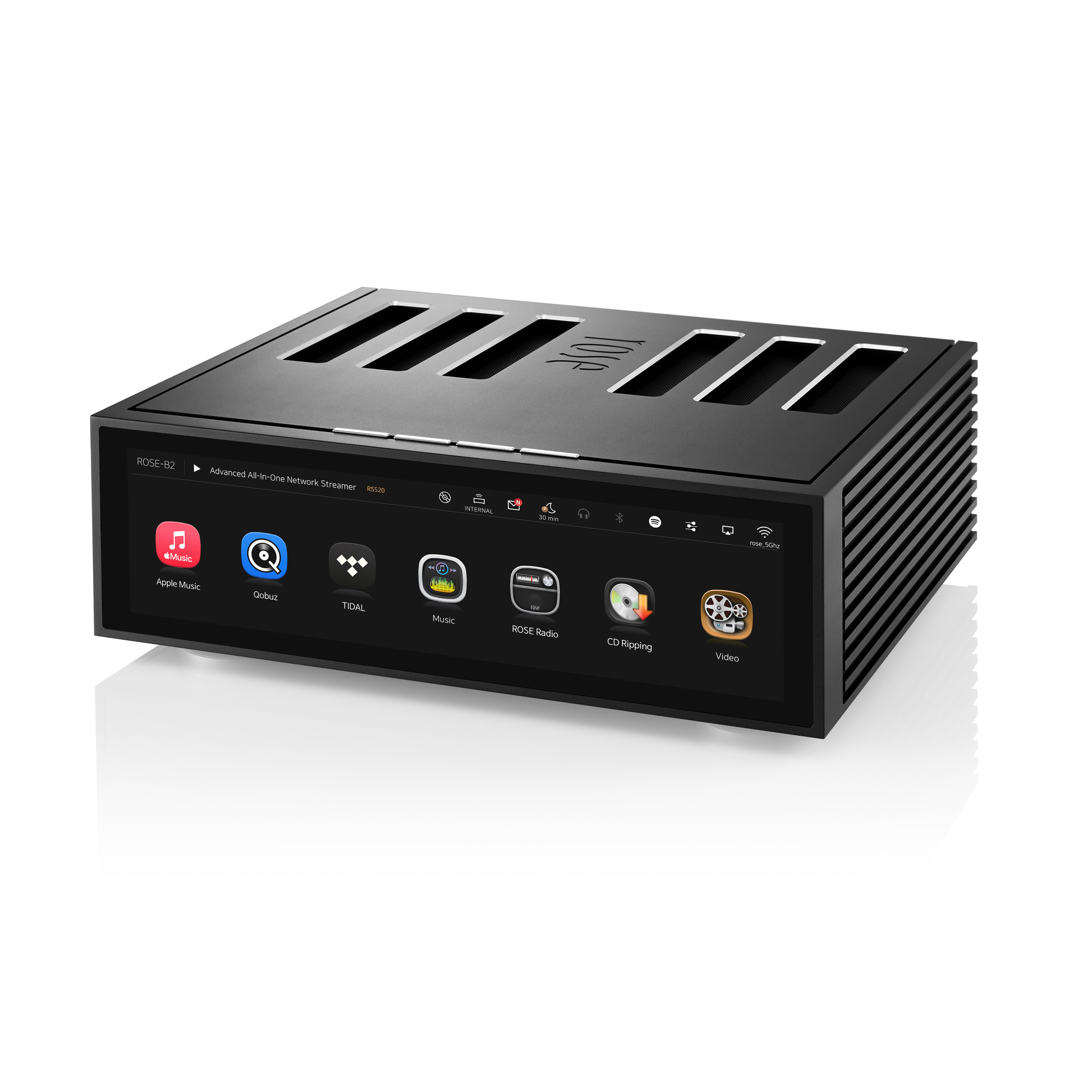

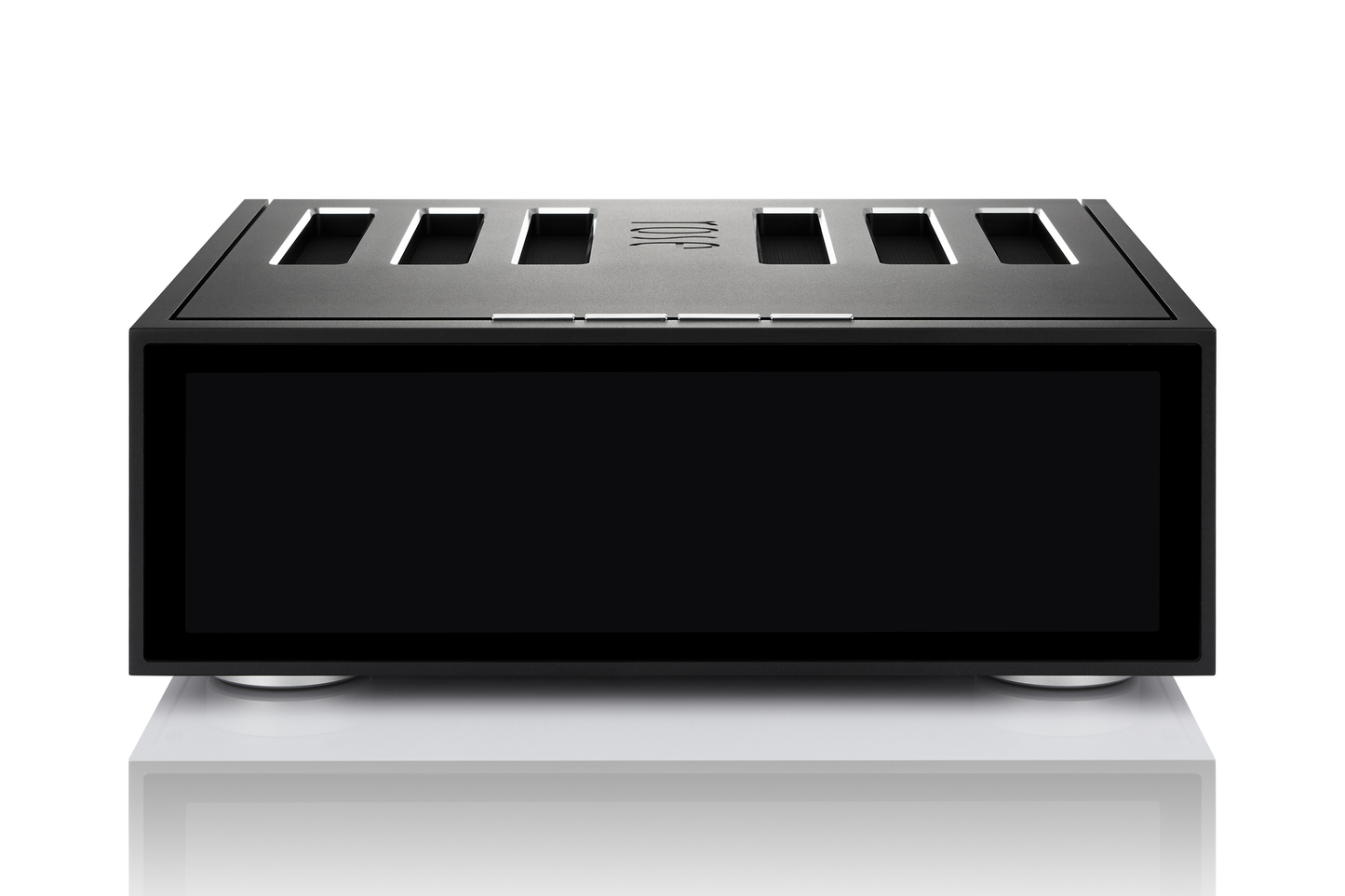

RS520 Wireless Network Streamer & Integrated Amplifier
RS520 Wireless Network Streamer & Integrated Amplifier
Regular price
$3,695.00 USD
Regular price
Sale price
$3,695.00 USD
Unit price
per
RS520 At A Glance
- Integrated amp with network audio and 4K video streamer
- 12.6" Touch Panel LCD Screen
- 200 watts x 2 into 8 ohms
- ESS SABRE ES9038PRO DAC
- Native support for Apple Music, Rose Tube, Roon, Tidal, Spotify, Qobuz, YouTube, Apple Podcasts, Internet Radio, & 4K Video support
- Hi-Res Certified
- MQA Full Decoder
- Upgradeable internal storage for locally stored files
- Run completely wireless or wired with gigabit ethernet.
Collapsible content
Specifications
Operating System: | Customized Android 7.1 |
Design | |
Size: | 13.6" W x 12.9" D x 5" H |
Weight: | 17.8lbs |
Finish: | Milled From Solid Aluminum |
Display: | 12.6" Wide Viewing Angle Multi-Touch Panel |
Power | |
FTC Power Output Rating (RMS): | 250W x 2ch (8Ω, 20Hz-20kHz, THD 0.05%) |
Total Harmonic Distortion (THD): | 0.05% (8Ω, 1W to 250W, 1kHz) |
Frequency Range: | 10Hz~85kHz (8Ω, 1W) |
Load Impedance: | 8Ω |
Wireless | |
Network: | Ethernet: 10/100/1000 BASE-T WiFi: 802.11ac Dualband USB Wireless LAN Card (Dongle) |
Bluetooth: | Bluetooth 4.2 (Via USB Dongle) |
Streaming: | Airplay / DLNA / Roon Ready / Spotify Connect / Bluetooth |

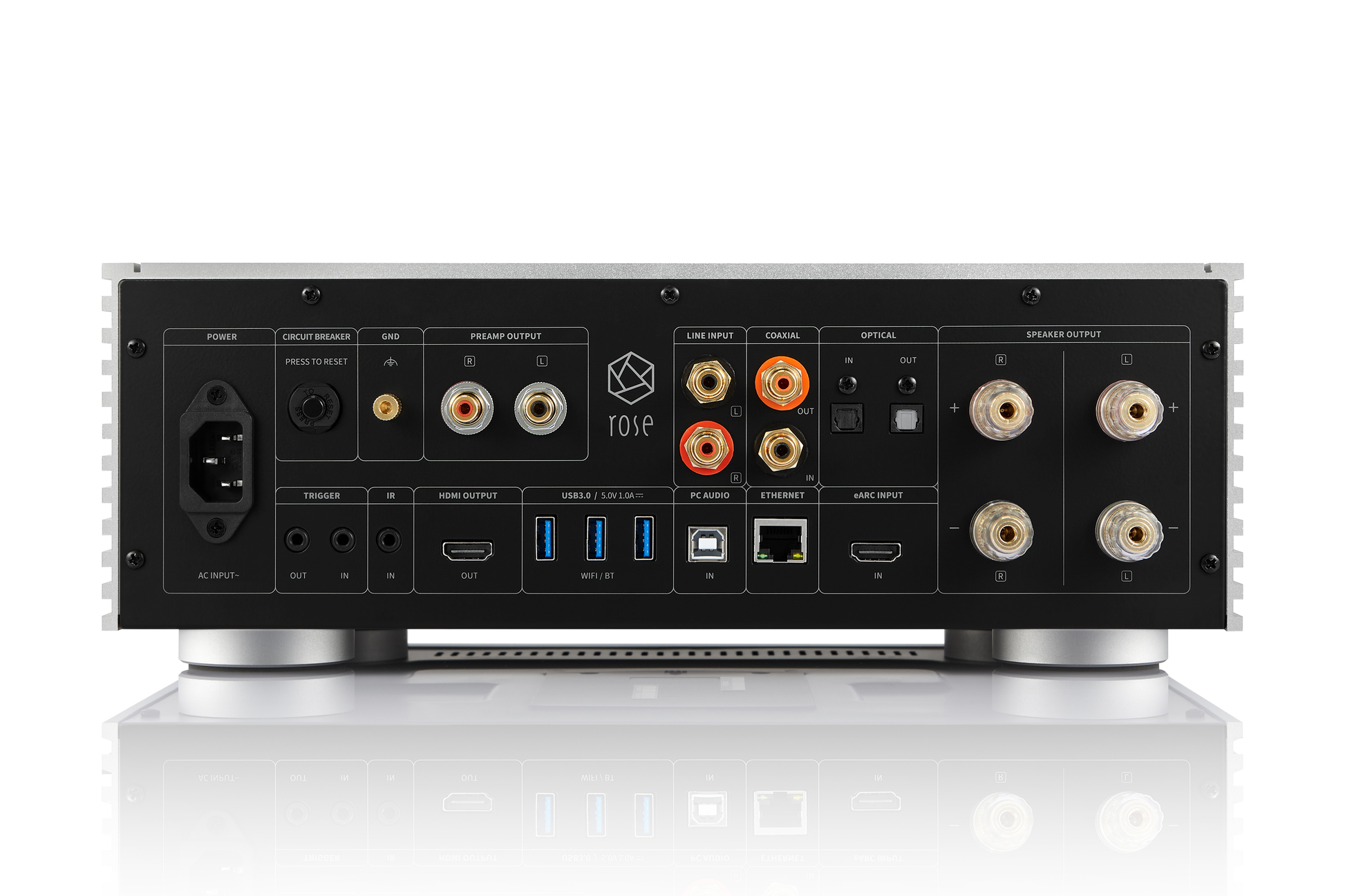

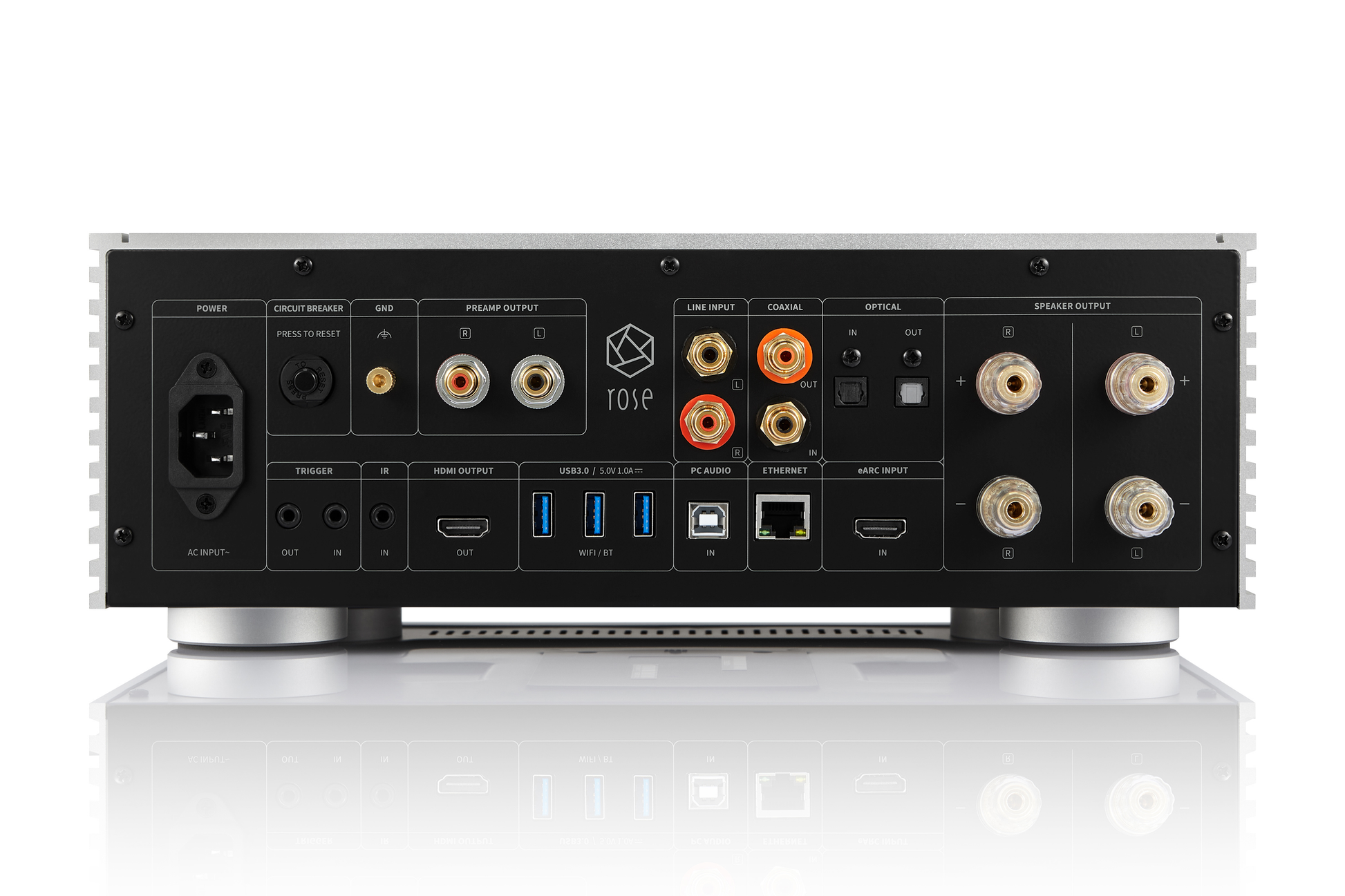

Inputs & Outputs | |
Audio input: | Optical x 1, Coaxial x 1, Line-In x 1, USB DAC x 1,eARCx1 |
Audio output: | Optical x 1, Coaxial x 1, Preamp-Out x 1 |
Video output: | HDMI 2.0 x 1(up to 3840 x 2160 / 60Hz) |
Media connection: | File System : NTFS / exFAT / FAT32 Network Protocol : SMBv1 / FTP / WebDav Storage Interface : USB3.0 x 2, SATA x |
Supported Codec | |
Audio: | MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC, PCM : 8kHz~768kHz(8/16/24/32bit per Sample), Native DSD : DSD64(2.8MHz)/ DSD128(5.6MHz)/DSD256(11.2MHz)/ DSD512(22.4MHz) ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.26 |
Video: | ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC, H.264/ AVC, Base/Main/High/High10 profile @ level 5.1 up to 4Kx2K @ 30fps H.265/HEVC, Main/Main10 profile @ level 5.1 High-tier up to 4Kx2K @ 60fps |
Power | |
Input power: | AC100-240V, 50/60Hz |
Output power: | DC 24V, 5.0A |
Standby power: | Standby mode<0.5W |
Update: | SW update via internet, manual update via USB |
Remote Control | |
Remote control: | BT Remote controller |
Remote App: | ROSE Connect (Android, iOS) |
Accessories: | Power Cord x 1, Bluetooth Remote Controller x 1 (AAA Battery x 2), Manual x 1, SSD Screw x 4 |
